Day 28: one pool, one block table per sequence

Date: 2026-07-23 · Week 7 · Phase 3 Batching and scheduler

What I added today

BatchedPagedKVCache in src/nanoserve/cache.py: N sequences, N BlockTables, and one BlockAllocator and per-layer pool underneath all of them. write(layer, k, v, valid) takes the padded batch’s key mask and stores only the real columns, so a row of length 2 occupies 2 slots and the rectangle never reaches the pool. slot_mapping() hands the read a [batch, max_ctx] table of slots plus a context_lens vector, and paged_attention is the batched decode read over it. seq_lens and cached_tokens report what the batch is actually holding.

The read itself is paged_attention_batched_reference in kernels/paged_attention.py, the same shape of thing Week 6 started from: one gather per row through its own slots, GQA repeat, softmax, with everything past context_lens[i] biased to finfo.min. No causal mask, because a decode query sits at the end of its own history and may see all of it.

gqa_attention grew the branch that ties the two together. A cache that exposes a ragged write and a forward that carries a mask is a prefill: store each row’s real K/V in that row’s blocks, then attend densely over this step’s own tokens, since on a prefill the history is exactly what was handed in. No mask means decode, which falls through to the fused batched read. LlamaModel.greedy_generate_batch is the loop that uses both: prefill the padded rectangle once, then one token per row per step, each row at its own absolute position, until every row has hit EOS or the cap.

Twenty-eight new tests in tests/test_batched_cache.py, all against oracles that already exist: the batched read equals paged_attention_reference on each row’s slots alone, the batched cache equals a per-row PagedKVCache, and greedy_generate_batch emits exactly the tokens greedy_generate_paged emits for each prompt run by itself, on the tiny model and on the real Llama-3.2-1B. Suite 239 green (5 GPU-gated skips), ruff clean.

Why it matters

Day 27 batched a prefill and had to stop there. One forward over N prompts is a real win and a useless one on its own, because a served request is one prefill and then hundreds of decode steps, and the decode steps are where a single-sequence engine wastes the card. The blocker was structural: PagedKVCache owns one block table, so there was no way to say which physical blocks belong to which row, and gqa_attention refused a padded batch on the paged path rather than attend over a neighbour’s blocks. Per-sequence tables are the missing piece, and they are cheap: the tables are the only per-row state, and the blocks stay common property.

The shared pool is the whole point, not an implementation detail. N contiguous caches side by side would also let a batch decode, and it would reserve each row a worst-case buffer and cap how many rows fit. One pool with per-row tables means a short sequence occupies exactly what it uses, blocks are handed to whoever needs one next, and rows interleave physically: in today’s diagram sequence A’s fourth block is number 6, not 3, because B and C took the next free ones first. That indirection is what the Weeks 8-9 scheduler will allocate out of, and it is why paging was worth building before batching rather than after.

It also finishes an argument Day 27 started. Padding is a property of the input tensor. Now that the cache is ragged, the only padding that survives is in the prefill rectangle and in the read’s addressing rectangle, and neither of those stores anything. What is left of the static-batching bill is the part a scheduler has to fix rather than a data structure: a row that has emitted EOS keeps getting a query, a slot and a block every step until the slowest row in the batch finishes. There is a test asserting that waste, so Week 8 has something concrete to remove.

What I learned

1. The key mask does not follow the tokens into the cache; it turns into a count. I expected to thread attention_mask through the paged read the way Day 27 threaded it through the dense one, and there is nothing for it to do there. A mask exists to silence pad keys, and per-sequence tables mean no pad key was ever written: the write consumes the mask, the pool holds only real tokens, and the read only needs to know how many of a row’s slots are real, not which. [batch, kv_len] of bools became [batch] of ints. So the batched read now refuses a mask outright, because at that point one is either redundant or is hiding a bug. The mask is a prefill-time object and the context length is its decode-time shadow, and I had been treating them as the same tensor.
2. Atomic per sequence is not atomic per batch, and the check has to happen on layer 0. BlockTable.append already reserves all-or-nothing for one sequence, which turns out to mean nothing here: rows 0 and 1 can grow and row 2 find the pool dry, leaving the tables disagreeing with the tokens actually stored. So the batch’s whole block demand is summed and checked before any row moves. The second half cost me a test run. I also guard that a masked prefill only lands on an empty cache, and the first version of that guard fired on layer 1 of a perfectly good prefill: layer 0 is the layer that grows the tables, so by layer 1 the rows already hold this step’s tokens. Any “is this the first write?” question in a cache where one layer owns the bookkeeping can only be asked on that layer.
3. The padding inside slot_mapping is a real memory access, not a placeholder. The reference indexes the pool with the entire [batch, max_ctx] rectangle and masks afterwards, so every padded entry is genuinely dereferenced; there is a test that writes 1e4 into the slot a short row pads with and asserts the output does not move. Which means the pad value has to be an in-range index, and specifically not the -1 I reached for first: torch wraps a negative index onto the end of the pool, silently reads whatever token lives in the last slot, and the mask then hides the evidence. Zero is always legal. A kernel makes this vanish by never issuing the load, which is exactly why the reference has to be the thing held to the oracle.

Diagram

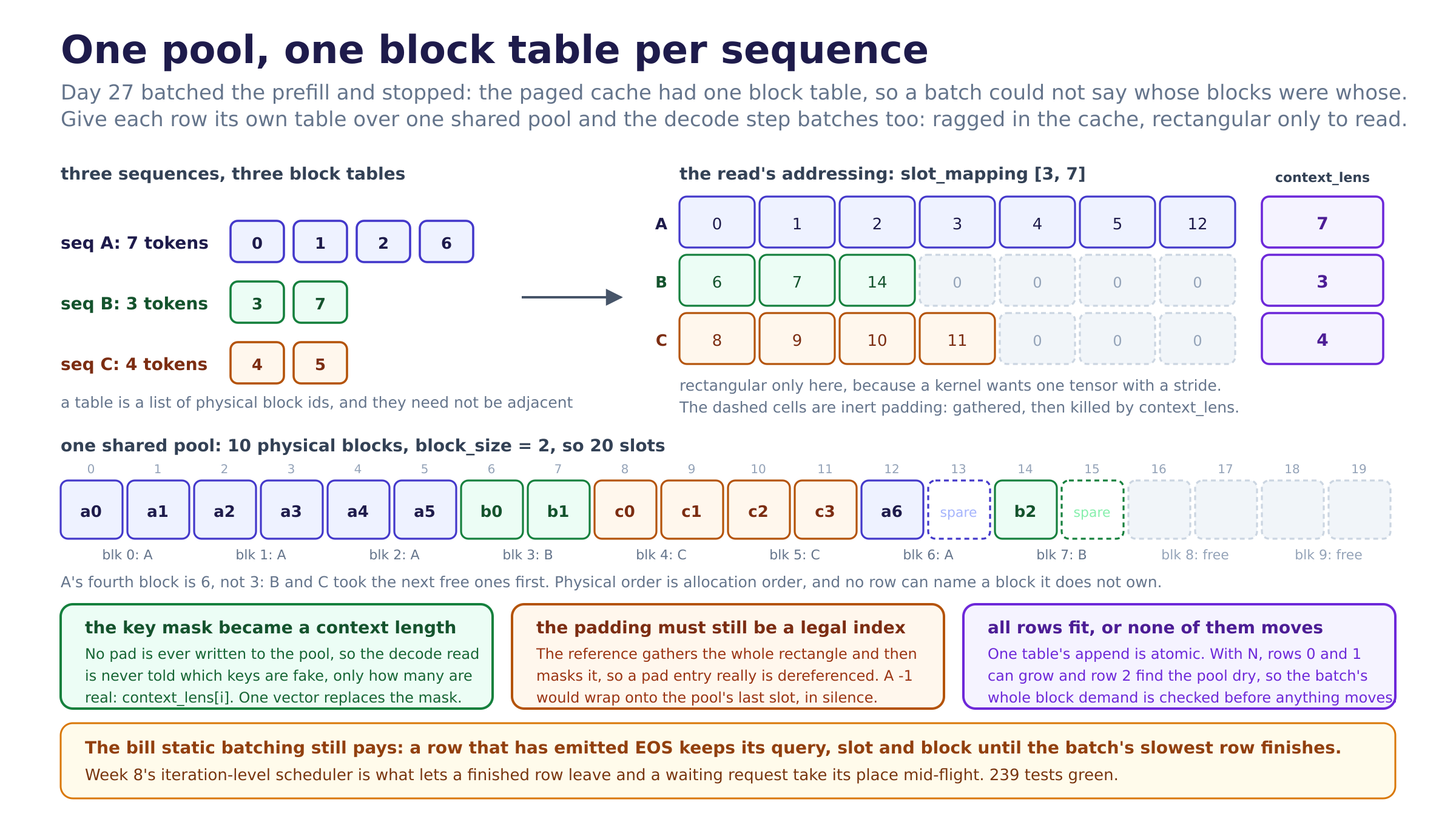

per-sequence-block-tables.png. Three sequences with their own block tables on the left, the read’s [3, 7] slot mapping and context_lens column on the right with the inert padding dashed out, and the shared 20-slot pool across the middle, coloured by owner so the interleaving is visible along with the two blocks that are reserved but not yet written. The three boxes below are the day’s lessons: the mask becoming a context length, the padding that still has to be a legal index, and the all-or-nothing reservation. The banner is the bill still owed: a finished row keeps its query, slot and block until the batch’s slowest row is done.

Tomorrow

Measure it. Static batching now runs end to end, so the week’s remaining question is what it actually buys and where it stops paying: tokens per second against batch size, and the head-of-line blocking number, which is what it costs the seven short rows in a batch to sit behind one long one. The existing benchmark harness already knows how to time a decode loop. That measurement is the honest setup for Week 8’s continuous batching, the same way padding_waste was for today. One debt noted while writing it: the batched read is still a reference that gathers a [batch, max_ctx] rectangle, so a short row pays for the longest row’s history. Lowering it to a kernel with one program per row and its own context length is the Week 6 treatment applied to the batch axis.
