Day 20: the number the Triton kernel has to beat

Date: 2026-07-04 · Week 6 · Phase 2 Paged memory

What I added today

src/nanoserve/readbench.py: a small, stdlib-only, clock-injected timing core for the paged read (ReadTiming, ReadComparison, time_read, compare_reads), plus the runner readbench.py that wires a real PagedKVCache into it. Six new pure tests in tests/test_readbench.py pin best-of, mean, median, and the speedup ratio against a scripted fake clock, exactly the way Day 13’s benchmark math was pinned. The runner builds the cache from the default Llama-3.2-1B config (no weights: the read cost depends on shapes and history, not on which tokens sit in the cache), prefills it to a history length, then times two read closures over the fixed pool: the Day-16 gather (rebuild the contiguous history, then a normal masked SDPA) and the Day-19 fused read (paged_attention_reference over the scattered blocks). Both are asserted byte-equal before timing, so only their speed is compared. Pure suite 130 green, ruff clean. The sweep across history lengths 16, 64, 256, 1024, 4096 is saved to docs/daily/data/day-20-readbench.csv.

Why it matters

Week 6 is the Triton kernel, and you do not write a kernel against a vibe. The whole reason the Day-18 reference and the Day-19 fused read exist is to give the kernel a fixed correctness target; today gives it a fixed performance target. The sweep says two honest things. First, the per-step read cost is roughly O(history) and it hurts at long context: a fixed floor of about 0.13 ms at 16 tokens, then it climbs to 32 ms at 4096, and the last leg alone (1k to 4k, 4x the history) costs 5.4x the time. Every decode step re-reads the entire cache, so the cache being large is the cost. That climbing tail is precisely what the kernel is for. Second, gather and fused sit within noise of each other, gather even a hair faster, because both are plain torch doing the same O(history) index gather; the fused reference folds the read into the score but does not make it cheaper. That is the honest framing the reference deserves: it is the oracle, not the speedup. The speed only arrives when a hand-written kernel streams K/V block by block and fuses the read and the softmax into one pass, and now there is a number on the wall for it to beat.

What I learned

Time the read, not the step, and the write has to leave the frame. Both reads share the identical write (_write: grow the table, scatter the K/V), and both append and paged_attention mutate the cache when called. Timing them directly would have measured the write over and over and grown the pool until it exhausted. The fix was to fold the write into a one-time prefill and hand the timer two pure closures over the already-written pool, so each can run 400 times without touching cache state. What you isolate is what you measure.
Best-of is the honest microbenchmark number, not the mean. On a shared CPU every sample is contaminated upward by scheduler jitter and never downward: nothing makes fixed work finish faster than the hardware allows. So the fastest sample is the cleanest estimate of the true cost, which is why min_s is the headline and mean/median are kept only to show the spread. The Day-256 point made this concrete: its median was 3x its best-of, pure noise, while the best-of stayed put run to run.
A benchmark whose two paths tie is still telling you something. I half expected the fused read to look faster and it did not, because on CPU it is the same gather. The tie is the result: it says the reference bought correctness and a clean interface, not speed, and it points a finger at exactly where the speed has to come from instead (the kernel, at long context). A microbenchmark that only ever confirms your hopes is not measuring anything.
The cost curve has two regimes and the kernel only helps one. At short context the per-step cost is a flat overhead floor (projection, softmax, Python), which paging and a kernel barely touch. The O(history) read only dominates once the history is long. That is the same shape production stacks report: paged attention and its kernel earn their keep at long context and large batch, not on a 16-token toy, and the curve draws exactly where the crossover sits.

Diagram

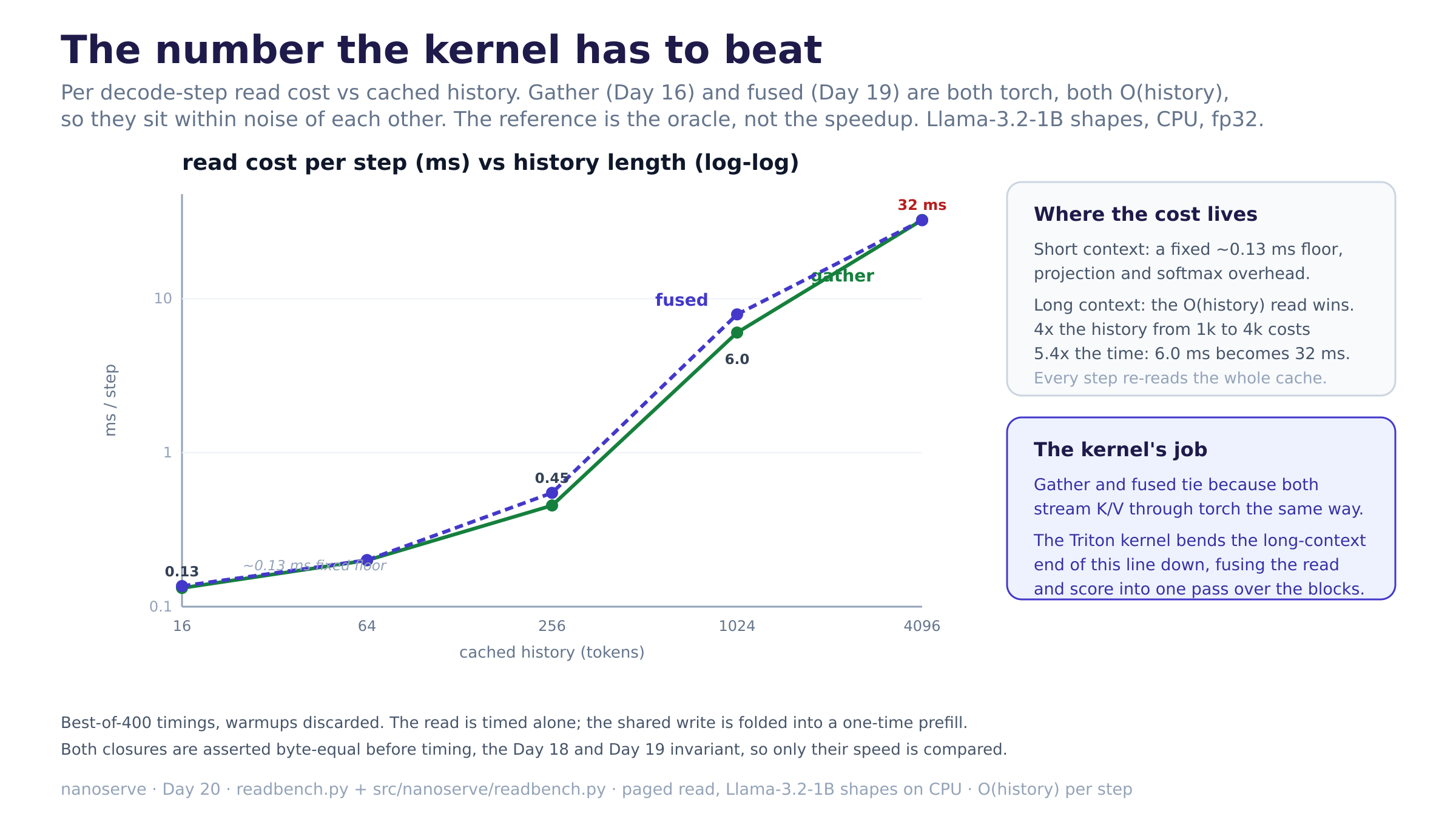

paged-read-benchmark.png. A log-log plot of per-step read cost against cached history, gather and fused nearly on top of each other, climbing from the 0.13 ms floor to 32 ms at 4096 tokens. The two side panels name where the cost lives (a fixed floor at short context, the O(history) read at long context) and what the kernel’s job is (bend the long-context tail down by fusing the read and score into one pass over the blocks). The two lines tracking each other is the point: the reference is the oracle, and the speedup is still owed.

Tomorrow

The kernel itself, or the Triton warm-up before it. With the target now measured, the next step is the first cut of the triton.jit paged-attention kernel behind the same paged_attention signature, held byte-close to paged_attention_reference and benchmarked against today’s curve with this same readbench harness. It needs a GPU, so it will run gated like the weights tests, and the CPU curve from today is the baseline it has to bend. If a learning day comes first, it is Triton basics (program ids, block pointers, tl.load/tl.store) posted as the warm-up, so the kernel lands on understood ground rather than copied incantation.

Post angle

Day 20 of building an LLM inference engine from scratch. Week 6 is the Triton kernel, and you do not write a kernel against a vibe, you write it against a number. So today I benchmarked the paged read I already have. Two honest results. One: the per-step read cost is O(history) and it bites at long context, a flat 0.13 ms floor at 16 tokens climbing to 32 ms at 4096, and the last stretch alone (1k to 4k, 4x the history) costs 5.4x the time, because every decode step re-reads the whole cache. That climbing tail is exactly what a kernel is for. Two: the Day-16 gather (rebuild the contiguous history, then attend) and the Day-19 fused read (attend over the scattered blocks in place) tie, gather even a hair faster, because on CPU both are plain torch doing the same O(history) gather. The fused reference folds the read into the score but does not make it cheaper. That tie is the honest framing the reference deserves: it is the correctness oracle, not the speedup. The speed only shows up when a hand-written kernel streams K/V block by block and fuses read and softmax into one pass, the shape vLLM and SGLang ship. Now there is a number on the wall for it to beat. Two gotchas: time the read alone (fold the shared write into a one-time prefill, or you just measure the write and grow the pool until it dies), and quote best-of, not the mean (CPU noise only ever pushes a sample slower, so the fastest one is the cleanest estimate of the real cost). 130 tests green. #AI #LLM #vLLM #BuildInPublic #Claude #OpenAI
