Day 23: the real triton.jit paged-attention kernel

Date: 2026-07-13 · Week 6 · Phase 2 Paged memory

What I added today

src/nanoserve/kernels/triton_paged_attention.py: the Day-22 fused loop, transcribed into an actual @triton.jit kernel. Day 22 wrote the read, the score, and the online softmax as a grid of tlsim programs running in a Python for, pinned to the Day-18 oracle. Today the same loop streams its tiles from HBM into SRAM and its programs run in parallel on the card. Two things change on the way down. The grid grows an axis: program (i, h) now owns query position i of query head h, so the per-head loop becomes free parallelism and the accumulators collapse from [n_q] and [n_q, d] to a scalar and one [BLOCK_D] row, small enough to live in registers. And every block shape has to be a power of two, because that is all tl.arange takes, so the head dimension is padded up to BLOCK_D and the key tile to BLOCK_N with a mask discarding the lanes past the real extent.

The layering is the actual design decision. Every integer the kernel turns into a pointer (the slot stride, past, the grid, the padded tile sizes) is computed by ordinary Python in check_paged_inputs, launch_grid, and next_power_of_2, which run and are tested on any box, GPU or not. The jitted body is held to paged_attention_reference by five tests gated behind a new requires_triton_gpu mark. select_backend dispatches: paged_attention launches the kernel on CUDA with Triton importable and otherwise falls back to the Day-22 CPU model, so the engine runs on a laptop while the kernel runs on the card. Eighteen new tests in tests/test_triton_paged_attention.py, thirteen of them pure. Suite 176 green (5 GPU-gated skips on this box), ruff clean.

Why it matters

This is the first code in the repo that cannot fully run where it was written, and that is the whole lesson. A GPU kernel is not debuggable the way a Python loop is: there is no stepping into a program, the failure mode of a bad pointer is a wrong number or a segfault, and the thing you most want to inspect (what tile did program 17 actually read) is exactly what the hardware hides. So the kernel is built to push every bug it can into code that is not the kernel. The addressing arithmetic, which is where paged-attention bugs actually live, is plain Python with plain tests. The numerics are pinned to an oracle that ran on the CPU three days ago. What is left inside @triton.jit is a transcription of a loop that was already correct, and when the GPU version disagrees with the reference, the tlsim model from Day 22 is where the disagreement gets reproduced in readable torch first. That is the shape vLLM and SGLang ship their paged-attention kernels in, a jitted body wrapped in ordinary host code that computes every index: not because the kernel is the hard part, but because the pointer math is, and pointer math you can single step is pointer math you can fix.

What I learned

1. tl.arange only takes powers of two, and that leaks into the whole design. A head_dim of 48 or a tile of 13 cannot be a block shape. The fix is not to forbid them, it is to round the extent up to next_power_of_2 and mask the lanes past the real one, which is the same mask discipline the CPU model already used for the ragged tail of the history, now applied to the channel axis too. The mask is what makes an awkward shape legal, so the awkward shapes are the ones worth testing.
2. The grid is where the per-head loop goes. On the CPU a program looped its query heads because a loop is a loop and it costs nothing to write. On a GPU that loop is parallelism I would be throwing away, so the head becomes a second grid axis and each program owns exactly one query, one head, one independent softmax, sharing nothing. The accumulators shrink to a scalar and a row, and that is precisely what lets them stay in registers rather than spilling. The shape of the grid decides the shape of the state.
3. Triton is absent, not broken, on a CPU-only box. It rides along with the Linux GPU torch wheel and simply is not in a CPU wheel, so import triton raises ModuleNotFoundError rather than failing at launch. That means “can I compile” and “can I launch” are two different questions with two different answers, and select_backend has to ask both: has_triton() for the package, torch.cuda.is_available() for the device. Neither implies the other, and a box with the package but no card is a real configuration.
4. A fallback should be the model, not a fast path. The CPU branch is not a degraded approximation of the kernel, it is the loop the kernel was transcribed from, correct to the same few ulps and simply slow. Keeping it honest about that is what makes it useful: it is the thing the GPU is checked against, so it has to stay the reference implementation and never drift into being a shortcut.

Diagram

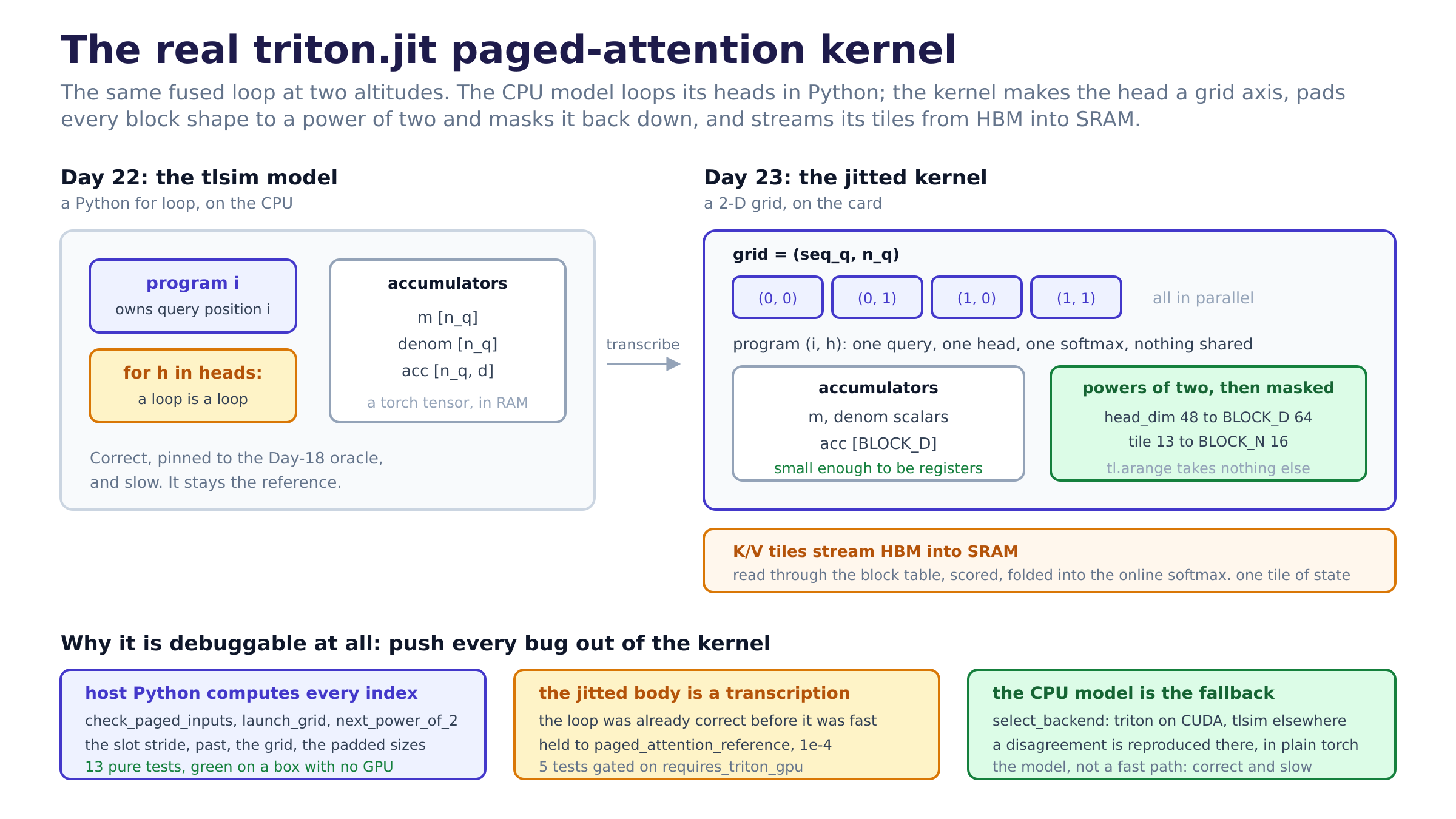

triton-paged-kernel.png. The same fused loop at two altitudes. On the left, the Day-22 CPU model: one Python program per query position, looping its heads, holding [n_q, d] accumulators. On the right, the jitted kernel: a 2-D grid where program (i, h) owns one query and one head, its tile padded to a power of two and masked back down, its accumulators a scalar and a row in registers, its K/V tiles streaming from HBM into SRAM. The band across the bottom is the layering that makes it debuggable: host Python computes every index and is tested everywhere, the jitted body is a transcription and is tested on a GPU, and the CPU model underneath is what a disagreement gets reproduced against.

Tomorrow

Benchmark it. The kernel is correct and completely unmeasured: the Day-20 readbench harness drew the O(history) curve for the gather, and the fused kernel needs to be put on the same axes to show the streaming read is actually flat in the history where the gather was linear. Then wire select_backend into gqa_attention’s paged read so the model path uses the kernel on a card instead of calling it only from tests, which is the last step that turns Week 6 from a kernel in a file into the engine’s real attention.
