Day 14: the block allocator, paging for attention starts as pure bookkeeping

Date: 2026-06-29 · Week 4 · Phase 2 Paged memory

What I added today

BlockAllocator in src/nanoserve/cache.py: a fixed pool of physical KV blocks with allocate, allocate_for(num_tokens), free, and free_all, plus a KVCacheExhausted exception for when the pool runs dry. It is deliberately torch-free: pure integer bookkeeping over block ids, a free list paired with an allocated set. Eleven new tests in tests/test_cache.py pin the contract (distinct blocks out, atomic multi-block reserve, reuse after free, double-free rejected, exhaustion raises). Pure suite 90 green, ruff clean. This is the first brick of Week 4: the contiguous Week-3 cache stays, but the machinery that will replace it starts here.

Why it matters

The Day-13 sweeps showed decode speed was already fine; the next wall is memory. A contiguous per-sequence cache has to reserve one growing buffer sized to each request’s worst case, which fragments VRAM and caps how many sequences fit. Paged attention borrows the operating-system trick: carve memory into fixed blocks and let a sequence’s logical token positions map to physical blocks that can sit anywhere. Today is only the allocator, the part that owns the pool and never loses or double-hands-out a block. Getting that invariant exactly right now is what lets the block table (next) and the paged read/write (Week 5) be the easy part.

What I learned

The whole component is one invariant: every block is in exactly one of two places, the free list or the allocated set. I store the free ids as a stack and the handed-out ids as a set. allocate pops the stack and adds to the set; free checks membership in the set and pushes back. That pairing is what makes a double free (or freeing a block that never belonged to this pool) a loud ValueError instead of silent corruption, because a block handed to two sequences is two sequences writing K/V over each other. The set is not an optimization, it is the safety rail.
allocate_for has to be atomic. A request needs ceil(num_tokens / block_size) blocks. If the pool cannot cover all of them, it must reserve none and raise, because a half-filled allocation strands blocks that no sequence owns and nothing ever frees. So the count is checked up front, before any block moves. A leak in an allocator is not a slow drip; it is a block that is gone for the lifetime of the server.
Concrete trace, a 6-block pool of 16-token blocks:
```
fresh pool: num_free = 6
seq A (40 tok): [0, 1, 2] | free = 3      # ceil(40/16) = 3
seq B (20 tok): [3, 4]    | free = 1      # ceil(20/16) = 2
seq C (16 tok): [5]       | free = 0
next request -> KVCacheExhausted: all 6 blocks allocated
seq A finishes, free_all([0,1,2]) | free = 3
seq D (30 tok) reuses freed blocks: [2, 1] | free = 1
```
Two things in that last line. The pool refilled from A’s exact blocks, so D is running on physical memory A just vacated, which is the entire point of a pool: one sequence’s death is another’s allocation. And D got [2, 1], not [0, 1], because the free list is a stack and reuse is last-in-first-out. Order does not matter for correctness (a block is a block), but it is a reminder that the allocator hands out whatever is free, not contiguous runs. A sequence is a list of block ids, and they can be scattered.
KVCacheExhausted is named now on purpose. On one sequence it just means “context too long for the pool”. But it is the same event that, once many sequences share the pool in Weeks 8-9, becomes a scheduling decision: stop admitting new requests, or preempt a running one and recompute it later to reclaim its blocks. Giving the out-of-memory condition its own type means the future scheduler catches one specific thing, not a bare RuntimeError it has to guess about.

Diagram

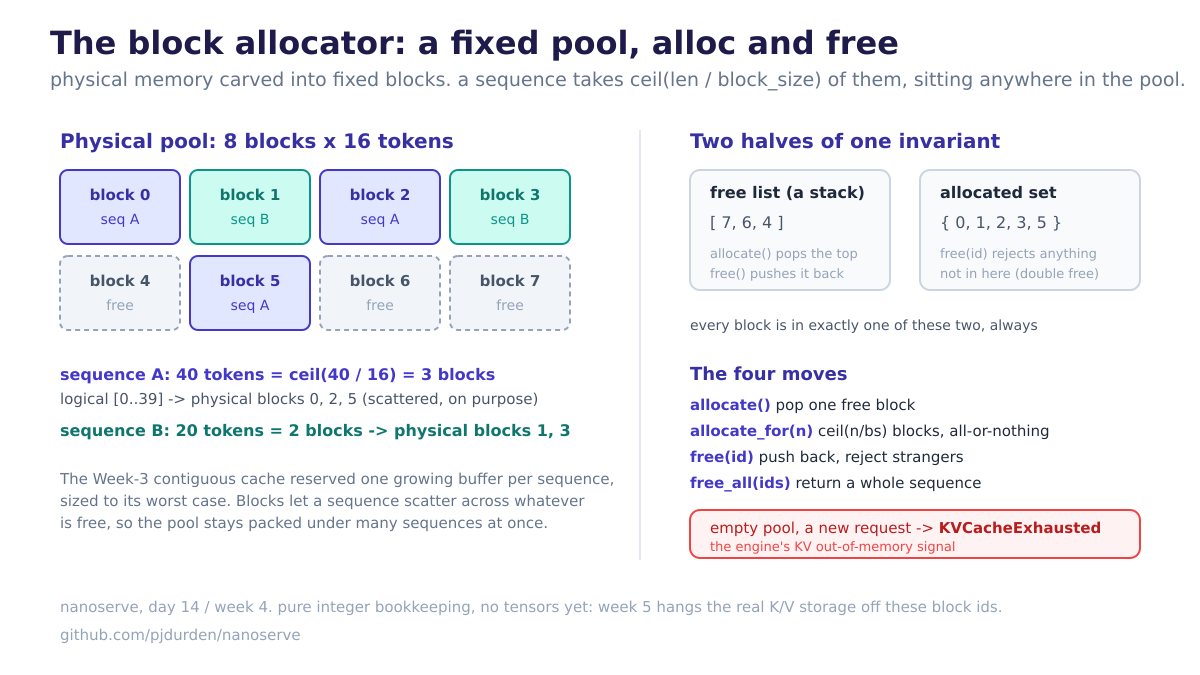

block-allocator.svg. Left: a pool of eight blocks, two sequences scattered across it, the rest free. Right: the free list and allocated set, the four operations, and the exhaustion signal.

Tomorrow

The allocator owns blocks but nothing yet says which block holds which logical token. Next is the block table: a per-sequence map from logical position to physical block, so position 17 with block_size 16 lands at offset 1 of the sequence’s second block. That is the address translation, and once it exists Week 5 can finally store and read real K/V through it.
