Day 35: the invariants, checked between every iteration

Date: 2026-08-08 · Week 9 · Phase 3 Batching and scheduler

What I added today

The stress test Week 9 has owed since preemption landed, and the thing that makes one worth writing: nanoserve/audit.py, the engine’s invariants written down as code. audit_pool says every block id is free or held by exactly one request and never both and never neither, which is four separate ways to be wrong and four different messages. audit_slots says the same about slots, which are cache rows. audit_requests says a waiting request holds nothing, a running one holds a slot and exactly the blocks its tokens need, and the waiting queue is in arrival order with nothing waiting older than anything running. audit_rows is the tensor half: a free slot’s row is empty, a held row’s block list is a prefix of its tenant’s reservation, and the K/V it holds is behind its tenant’s text and never ahead. soak is those checks in a loop around Engine.step: submit far more requests than there are slots, drain through a pool far too small for them, audit between every iteration, and hand back a SoakReport with what the pressure cost. Four public accessors exist now because the auditor needs to see the ledgers rather than their sizes: BlockAllocator.free_blocks and allocated_blocks, Scheduler.free_slots and known_ids. Thirty-eight new tests in tests/test_soak.py, and every check is proved to fire by corrupting exactly one thing, since an assertion nobody has ever seen fail is a comment. Suite 495 green (5 GPU-gated skips), ruff clean.

I also seeded the model helper in tests/test_batch.py, which was the one unseeded one in the suite. Torch draws its default generator’s seed from the OS at process start, so that file was a different experiment every run, and about one draw in a hundred and fifty produces weights where a position gap moves the logits by less than the test’s tolerance. It failed on me today for the first time in nine days and had nothing to do with anything I wrote.

Why it matters

Here is the experiment the whole day is for. Twelve requests, three slots, ten blocks, and one block lost exactly once, on the third release, by a free_all that drops its first id.

With the audit running between iterations:

InvariantViolation at iteration 9:
block 2 is allocated but no request holds it

Without it, the same run, same seed, same everything: all twelve requests finish, in thirty-two iterations, with zero preemptions, and every answer is identical to the run with no leak in it. The pool ends the run holding nine blocks of ten and says nothing at all. No test of the output can see that, because the output is correct. The damage is that this pool is now ten percent smaller forever, and the run that eventually notices is some later workload that preempts more than it should for a reason nobody can name.

That is the shape of every failure preemption adds. They are not wrong answers, they are accumulative, so the test has to look at the state rather than the answer.

The soak’s own numbers, six requests through three slots, nine tokens each, only the pool moving:

pool	evictions	worst request	recompute share	text
64 blocks	0	never evicted	0.0%	baseline
16 blocks	0	never evicted	0.0%	same
8 blocks	2	evicted once	23.5%	same
5 blocks	5	evicted twice	38.6%	same

And the hard one, ten requests through four slots and six blocks: 52 iterations, 16 evictions, seven of the ten evicted twice, the oldest never once, and 51.3% of the forward spent on K/V bought a second time. Same text as a pool that never preempts. Every block back, every slot back, every row empty.

The honest note: the audit did not find a bug in the engine. Days 30 to 34 tested each of these edges individually and they held. What it found is the ones I injected on purpose, which is the only evidence that the harness is a test and not a decoration, and it is why four of the thirty-eight tests break the engine deliberately and assert on the message.

What I learned

1. The observation point is part of the invariant. These checks are true of a settled engine, between iterations, and deliberately false in the middle of a schedule, where a slot is taken from one request and given to another. Two of them carry slack for that: a running request’s blocks must cover num_tokens - 1, because between a sample and the next schedule it holds one token more than its blocks do, and a cache row may be one block behind its request, because the scheduler grows the request at the top of an iteration and the engine syncs the row just before the write. Both bits of slack are real work in flight rather than sloppiness, and the price is that a check with an off-by-one bug of exactly that size would pass. The pool ledger has no slack at all, which is exactly why it is the check that finds things.
2. A conservation bug is invisible to a test that asserts on output. I have written ninety-odd tests this phase that generate tokens and compare them, and not one of them could have caught the leak above, because the leak does not change a token. This is a general shape and not a nanoserve one: any resource a system recycles needs a test that counts the resource, and the only reliable place to count is between operations, not at the end, because at the end everything has been released and a leak and a clean run look the same until the very last comparison.
3. Progress is a weaker property than throughput, and the loop needs the weak one. The soak’s livelock detector accepts a preemption as progress, which feels wrong: an engine thrashing its pool is going nowhere. But an engine that preempts is still moving state, and a detector that called thrash a deadlock would fire on the healthy 5-block run, whose whole point is that it thrashes and still finishes. So the exception is for the shape that cannot recover (no token collected, nothing finished, nothing preempted, work still queued: a waiting head that cannot fit and nobody running to free anything) and the thrash is reported as a number, max_preemptions, for a human to judge.
4. The invariant nobody had written down was the queue’s order. _admit only ever looks at waiting[0], so a waiting queue out of arrival order does not raise anything, it just quietly starves whoever got pushed behind. That was untestable before Day 33, because nothing ever put a request back on the queue; now preemption does, at the head, and the head is precisely what admission trusts. Writing the checker is what made me notice that the ordering claim in the Day-33 docstring (“anything still waiting arrived after it”) was load-bearing and unchecked. It holds, and now something says so every iteration.

Diagram

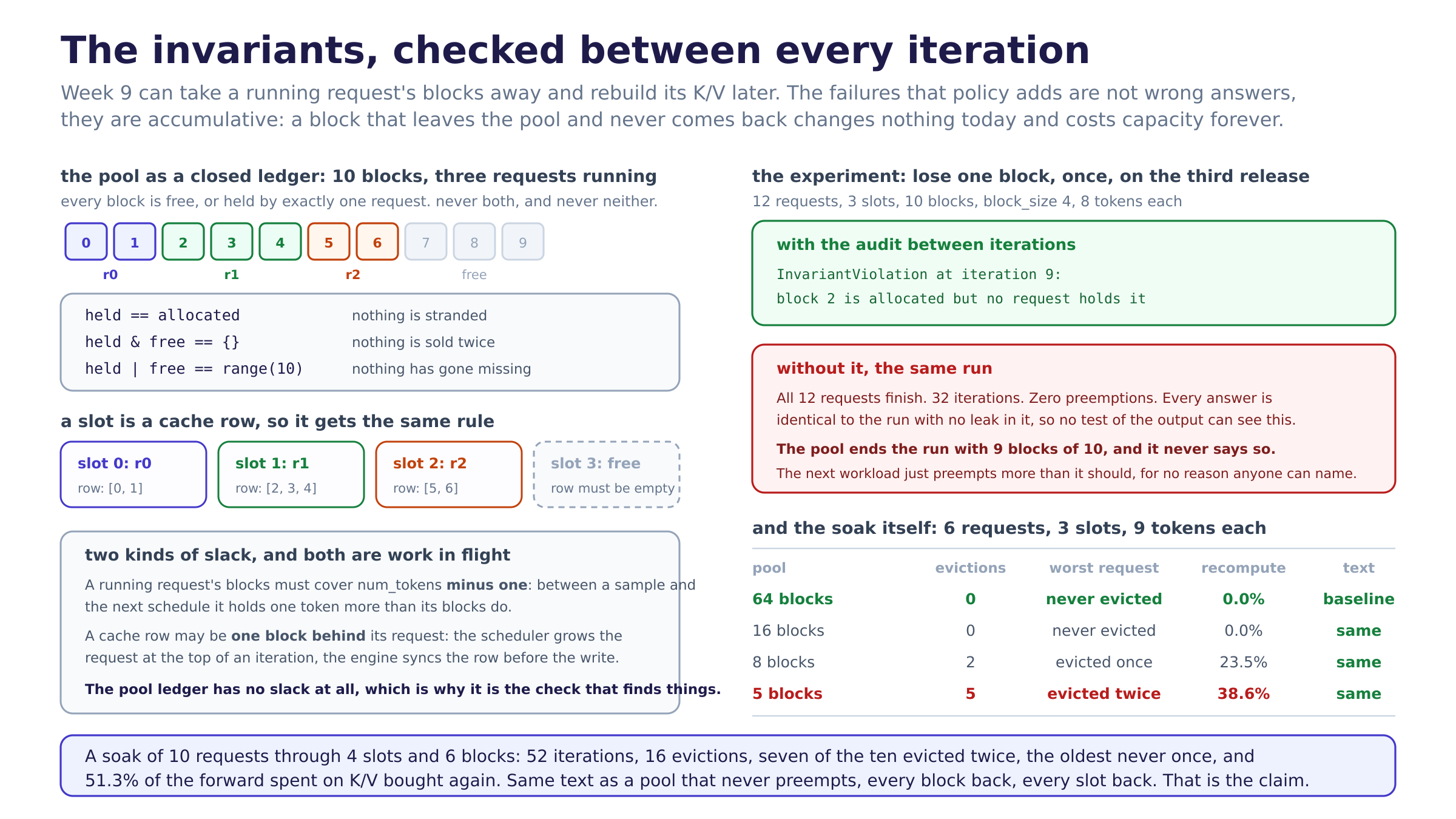

soak-invariants.png. Left is the ledger drawn: ten blocks coloured by owner, the three set identities underneath, the four slots with the rows that have to agree with them, and the two kinds of slack with the note that the pool has none. Right is the leak experiment, the audited run stopping at iteration 9 with the block id in the message against the unaudited run finishing all twelve requests correctly and quietly ending nine blocks short, then the pool sweep with the text column that never changes. The banner is the hard soak: 52 iterations, 16 evictions, half the forward spent on K/V bought twice, and everything handed back.

Tomorrow

The scheduler edge cases that have been piling up all week, now that there is a harness to run them under: aborting a request that is currently preempted (its tokens are alive, its K/V is not, and it is sitting in the middle of the waiting queue), a prompt whose length exactly fills a block so the first decode crosses a boundary immediately, and the watermark, which has been a 1% default since Day 30 that nobody has measured. The watermark is the interesting one: it exists to stop a newcomer taking the pool’s last block and being preempted for it a step later, and soak plus Day 34’s sweep is finally enough machinery to say whether it does. After that Week 9 closes and the engine gets an HTTP server in front of it.

Post angle

Day 35 of building an LLM inference engine from scratch. Today’s test: take the engine, lose one KV block on purpose, once, and see who notices. Twelve requests, three slots, ten blocks, and a free_all that drops one id on the third release. Without a check, the run finishes all twelve requests in thirty-two iterations, zero preemptions, and every single answer is identical to the run with no leak in it. It just ends holding nine blocks of ten and never mentions it. No test I have written this phase could catch that, because none of them look at anything but tokens, and the tokens are right. The pool is simply ten percent smaller from now on, and the run that suffers is some later one that preempts more than it should for no reason anybody can name. So today is the invariants written down as code, four of them: every block is free or held by exactly one request, never both and never neither; same for slots, which are cache rows; a waiting request holds nothing and a running one holds exactly what its tokens need; a free slot’s cache row is empty and a held one addresses its own tenant’s blocks. Then a soak that runs those between every iteration while far more requests than slots grind through a pool far too small. With the check in, that leak is caught at iteration 9, by name: block 2 is allocated and no request holds it. Two things I got wrong. The invariants are not true at every instant, only between iterations, and two of them need one unit of slack (a request holds one token more than its blocks until the next schedule, and a cache row can be one block behind its request) because that slack is real work in flight. The pool ledger needs none, which is why it is the check that finds things. And the livelock detector has to count a preemption as progress, even though thrash goes nowhere, because the run whose whole point is that it thrashes and still finishes is the run I most want to pass. Hard soak: ten requests, four slots, six blocks, 52 iterations, 16 evictions, 51.3% of the forward spent on K/V bought a second time, same text as a pool that never preempts, every block back, every slot back. vLLM and SGLang keep this kind of checking behind a flag for the same reason. 495 green.
